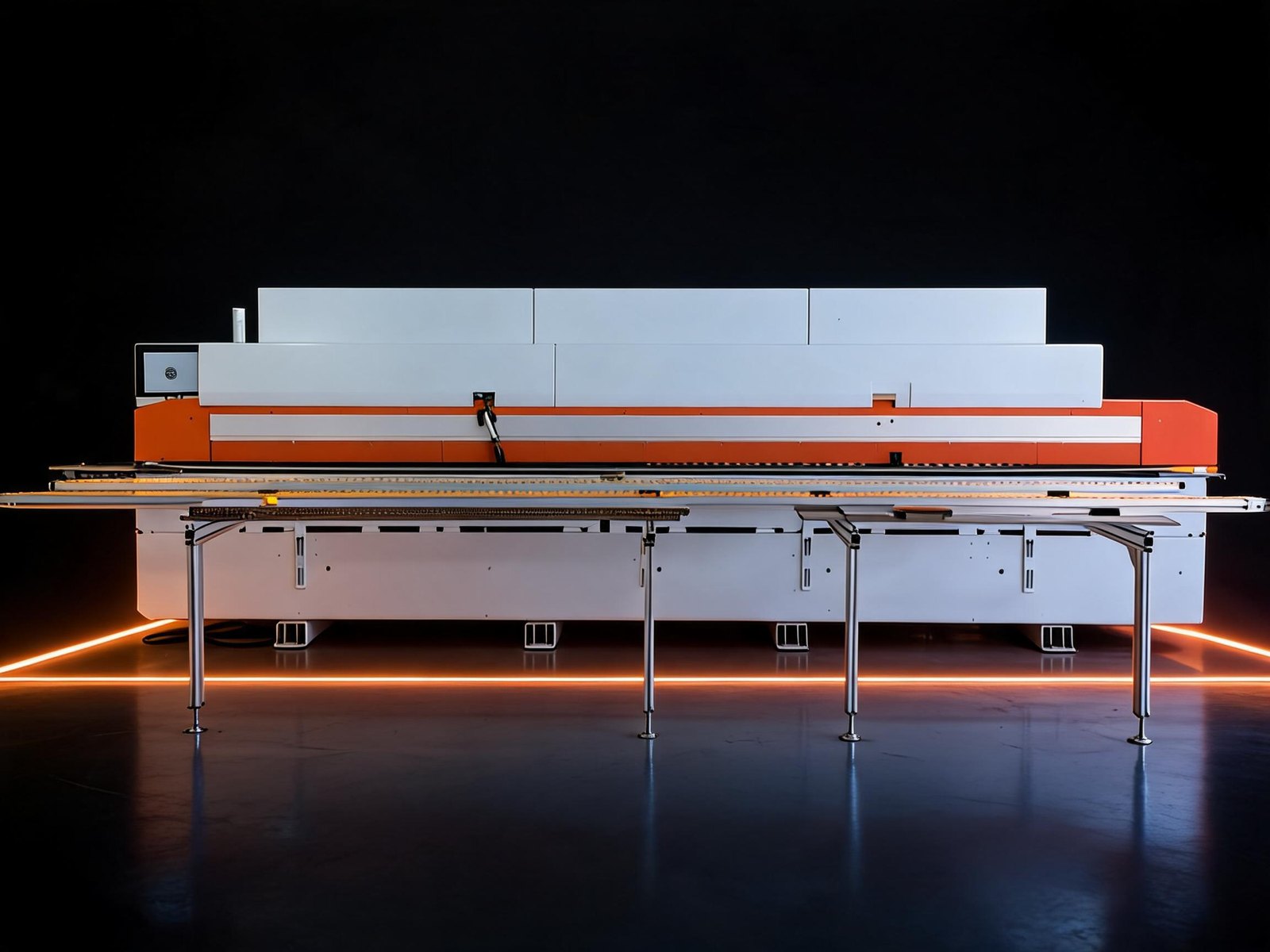

Stainless Steel Honeycomb Panel Laser Edge Bander
Sealed edges. No visible seam.
Overview
Edge bander for stainless steel honeycomb panels. The steel strip is laser welded on, then trimmed, sanded and polished.
The track carries the panel through every station: pre-milling, strip feeding, laser welding top and bottom, laser strip cutting, end trimming, two sanding stations and side polishing.
Good for · Factories making stainless steel honeycomb cabinets.
Used for
- Stainless steel honeycomb panels
- Cabinet doors and bodies
- Wardrobe panels
Specifications
| Laser power | 1.5 kW × 3 |
|---|---|
| Feed speed | 3.5 m/min |
| Panel width | 80 mm and up |
| Panel thickness | 18 mm |
| Strip width | 17 – 18 mm |
| Strip thickness | 0.4 – 0.6 mm |
| Total power | 25 kW |
| Machine size (L×W×H, mm) | 7300 × 1000 × 1800 |
| Weight | 4000 kg |
| Screen | 19 inch touch screen |
From the factory spec sheet. Final setup confirmed with your quote.
