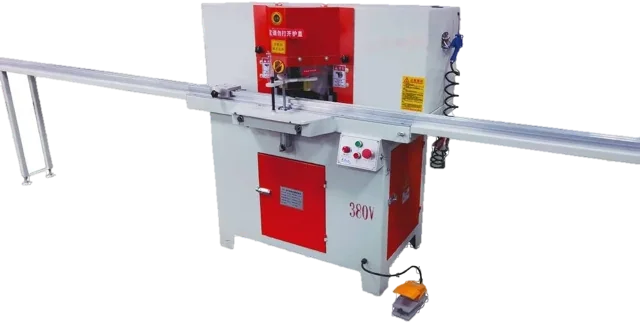

45 Degree Double Head Miter Saw
Two blades. One clean corner.
Cuts clean 45° corners on aluminium profiles with two saw blades.

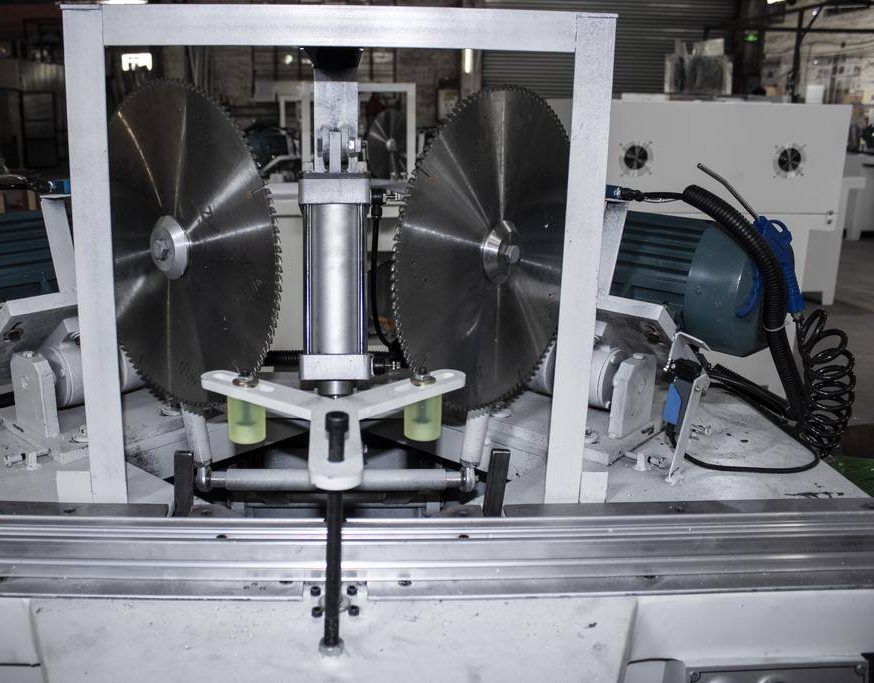

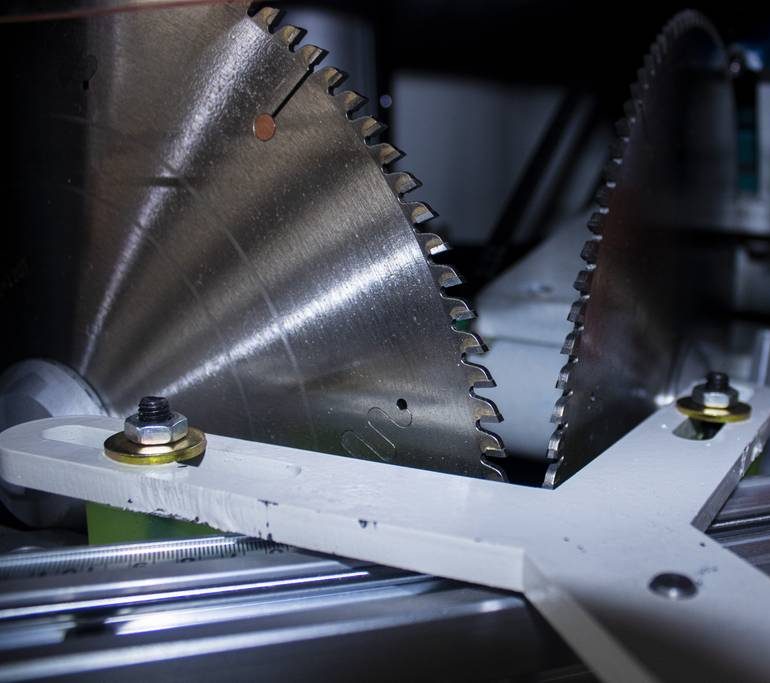

Two saw blades cut the profile at 45°, so the two pieces meet clean at the corner. Built for daily frame work in window, door and cabinet workshops.
Good for · Workshops that make frames every day and want corners that close tight.
- Window and door frames
- Sliding window sashes
- Aluminium cabinet door frames
- Glass and display frames
| Size | Saw blade (mm) | Max. cut width | Max. cut height | Motor | Machine size (L×W×H) |
|---|---|---|---|---|---|
| 305 | 305×25.4×3.0 120T | 65 mm | 90 mm | 1.5 kW ×2 | 1180×750×1320 mm |
| 350 | 350×25.4×3.2 120T | 95 mm | 120 mm | 2.2 kW ×2 | 1260×830×1400 mm |
| 405 | 405×25.4×3.5 120T | 110 mm | 170 mm | 2.2 kW ×2 | 1360×930×1500 mm |
| 450 | 450×25.4×4.5 120T | 120 mm | 180 mm | 3 kW ×2 | 1450×1000×1510 mm |
| 505 | 505×25.4×4.5 120T | 135 mm | 200 mm | 3 kW ×2 | 1510×1200×1540 mm |
Cutting angle 45° × 2. Power 380 V (220 V available). Machine size without the support tables. Confirm the setup for your country before you order.
Questions buyers ask.
Which size do I need?
It depends on your profiles. Send us a profile drawing or a photo with sizes. We match the right model and send the spec sheet.
Can it cut cabinet profiles too?
Yes, it cuts aluminium window, door and cabinet profiles. Send us your profile and we confirm before you order.
More in this line
Ask for spec sheet and price
Tell us the machine, your country and your profiles. We reply with the spec sheet, price and shipping cost.
