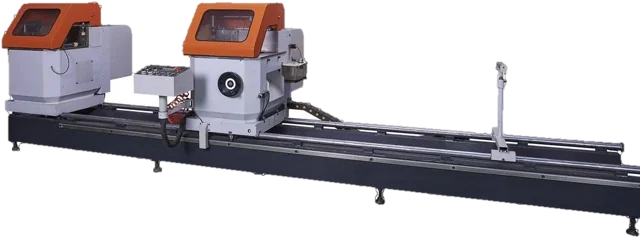

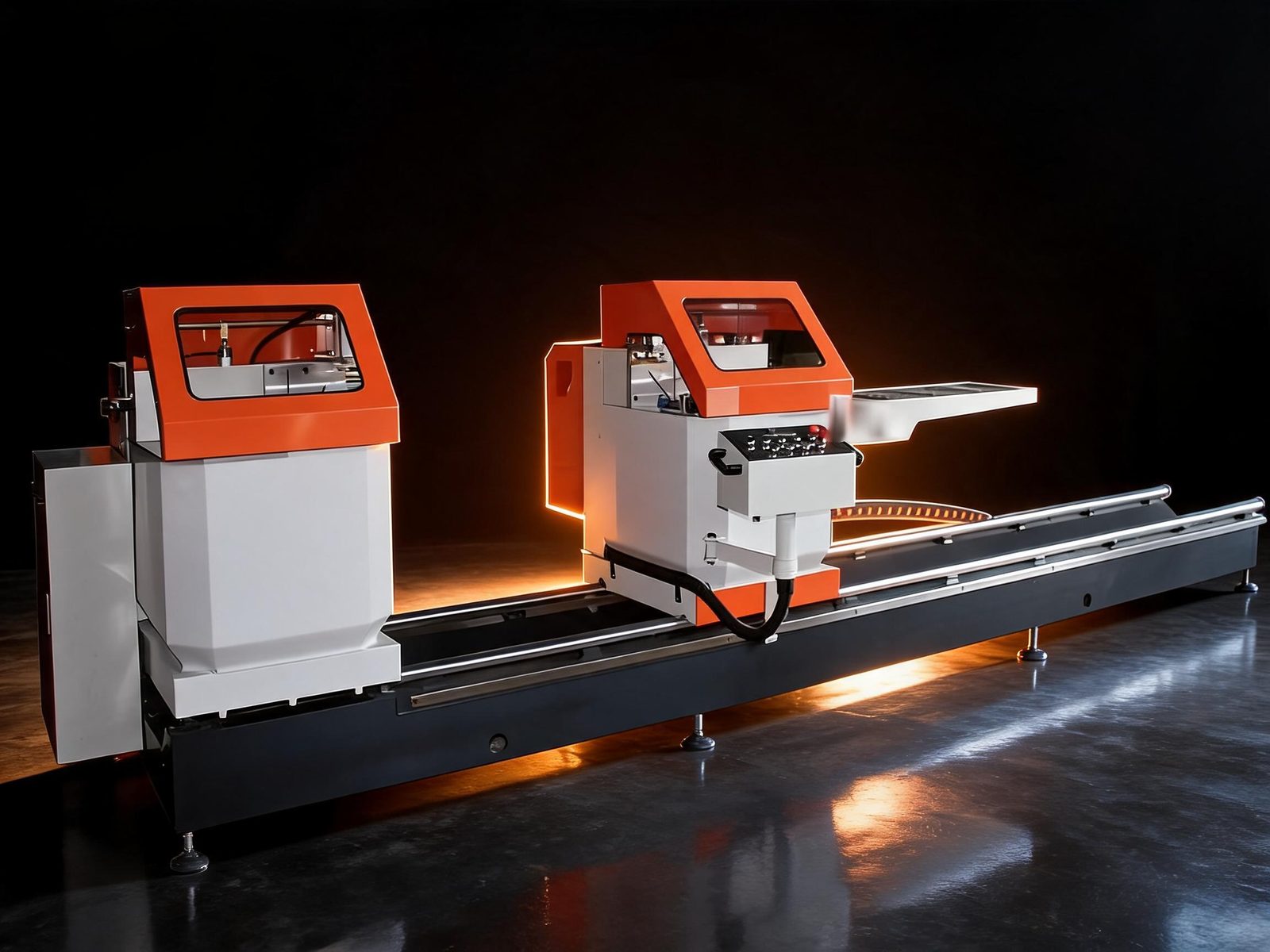

550 Double End Saw (Manual / Fully Automatic)
Both ends. One pass.
Overview
Cuts both ends of a long profile at the same time. Manual or fully automatic.
Two saw heads cut both ends of the profile in one pass, so every piece comes out the same length. Choose the manual version or the fully automatic version.
Good for · Workshops moving from one-by-one cutting to batch production.
Used for
- Frame and sash pieces cut to the same length
- Big project orders with many equal pieces
- Long window and door profiles
- Curtain wall and partition profiles
Specifications
| Motor power | 2 × 3 kW (fully automatic: 2 × 3 kW + 1 kW servo) |
|---|---|
| Voltage | 220 V or 380 V |
| Cutting angle | 45° / 90° |
| Machine size (L×W×H, mm) | 5800 × 1200 × 1450 (fully automatic: 5800 × 1120 × 1500) |
From the machine nameplate. Final setup confirmed with your quote.
Questions buyers ask.
Manual or fully automatic?
Manual is simpler and costs less. Fully automatic saves labour on big orders. Tell us how many windows you make a week and we suggest one.
Is it a long machine to ship?
Yes, double end saws are long. We tell you the packing size with the quote, so you can plan the container.
